Thursday, February 25, 2010

Handle bars from hand rails

Whatever your budget for holds, you will always want more. So, how can you get some standard work horse holds on the cheap? Mass production with wood. Of course, available materials make certain holds easier to make with wood than others, and because of the expense of ‘real holds’ made from plastic, the holds we most want to make for cheap are the ones that are least interesting and most expensive: Jugs.
Basically, you will need to make two types of jugs: handle bar rings and directional jugs. We made three slightly different handle bar rings.

(1) partial hand rings (2) full hand rings (3 matching handlebars
The design for all three handle bar styles is basically the same: a chunk of handrail between 6 and 14 inches in length, a spacer at each end, and counter sunk holes for lag screws or standard bolts at both ends.
Lowes has round (pine) and oval (poplar) handrail. Both seem plenty strong enough for the task. It comes in multiple lengths; I have tended to use 10ft lengths, the most that will fit in our van. Avoid knots and warped sections.
(1) For the partial hand rings I used a single layer of 3/4 inch plywood cut into small rectangles. This means that adults can not get their full hands around the rings, while kids can. (round pine)
(2) The full hand rings have double layers of plywood and are plenty roomy to get a super juggy grip. (round pine)
(3) Monster matching handlebars use sections of 2X3s as spacers and the oval poplar hand rails.
Mass production Steps:
  1. Clamp the handrail, mark lengths with a pencil.
  2. Near each section end drill the counter sink holes (~one inch flat bit).
  3. Use circular saw or hand saw to cut lengths along pencil marks.
  4. Cut spacers from plywood, molding or 2X3s.
  5. Sand corners of handrail and spacers with a disc sander (clamp drill in table).
  6. Glue spacers to handrail ends with wood glue, clamp with weights for a couple hours (ideally leave them overnight).
  7. Drill holes for lag screws or bolts slightly larger than the hardware.
  8. Fit washers and bolt to t-nuts, or drive lag screws through the wall surface and into the framing.
SAFETY NOTE: make sure that both ends are either in a t-nut or lag screwed fully into the 2X6 framing. This limits the location options, but this is not such a problem since these holds are mainly just random jugs for warm ups and beginner problems.

Wednesday, February 24, 2010

More Mojo in your Dojo

How can you get the most out of your home bouldering wall while keeping plenty of extra cash for other key climbing supplies, like chalk and beer?

Mass production of standard holds. Over the next several posts I am going to write up some strategies I have used to get more climbing potential out of our home bouldering wall. Later I might write up some posts about wall design and construction. For now, let’s focus on holds, and three principles to guide us:

1. The more the merrier. Ideally, every available space for a hold will be filled. You want to take full advantage of the space you have constructed.

2. Diversity is good. You want to have a wide array of hold types and sizes to maintain interest and stretch your imagination.

3. Consistent distribution. You want a variety of hold types in all parts of your space, so that hard, medium, and easy problems can cross all areas of the wall.

When do you have enough holds? When you can no longer fit any more holds on your wall. Our dojo is not there yet. Check out this shot.

The prime climbing area on the 30 degree wall is mostly filled with holds. We can squeeze a couple more around the edges, and we need some small footholds added throughout, but besides that, the area is pretty well filled. Notice the hold diversity. We have made an effort to spread small, medium and large holds; downward pulling edges, sidepulls, underclings and pinches; as well as vary how positive the holds are, though we have few true slopers because they take a lot of space and are hard to make at home. The distribution of types is pretty consistent, though at the edges we have placed more of the ‘likely to be used in that spot holds’.

In contrast, check out the relatively sparse distribution in the “kids” area, with the near vert walls and roof. Density could easily be doubled here. Also note that while the slabs hold some variation, the roof defaults to jugs, especially handle bars. The simple reason for this is access, we make the whole wall accessible to the widest range of abilities that we can. Clearly, we have room for improvement. We need more medium and small holds, more directionals, complex shapes, and footholds in this area.

Gym climbers may debate which hold manufacturer is best: SoIll, Etch, Pusher, Metolious, Straight Up (from long ago). But for the home climber, these companies are nice, but none of them can compare to Lowes or Home Depot when it comes to price.

Tuesday, February 2, 2010

The Dojo

The Dojo in Spring 2014

Since these photos were taken I have added two sets of Kilter holds, moved several of the holds from 50 degree wall and on to spaces where they are more available for traversing.  I also added some footholds to make better rest stances at both ends of the room and on the pillar in the middle.
Finally, I build the campus board downstairs.

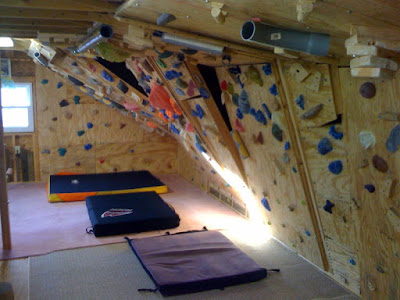

The Dojo in Winter 2010.

Wet and cold have kept us indoors. Thankfully, I have had time to make improvements to our bouldering dojo, including new carpet and some new holds, including the newly minted PVC roof route.

Here is a detail on one of the little holds we added recently. Pumpy. Standard 3.5 inch PVC with 180 grit glue on sanding discs. This section is about 5 feet long, with intermittent patches of texture.

Here is a section demonstrating current hold density in one section.
